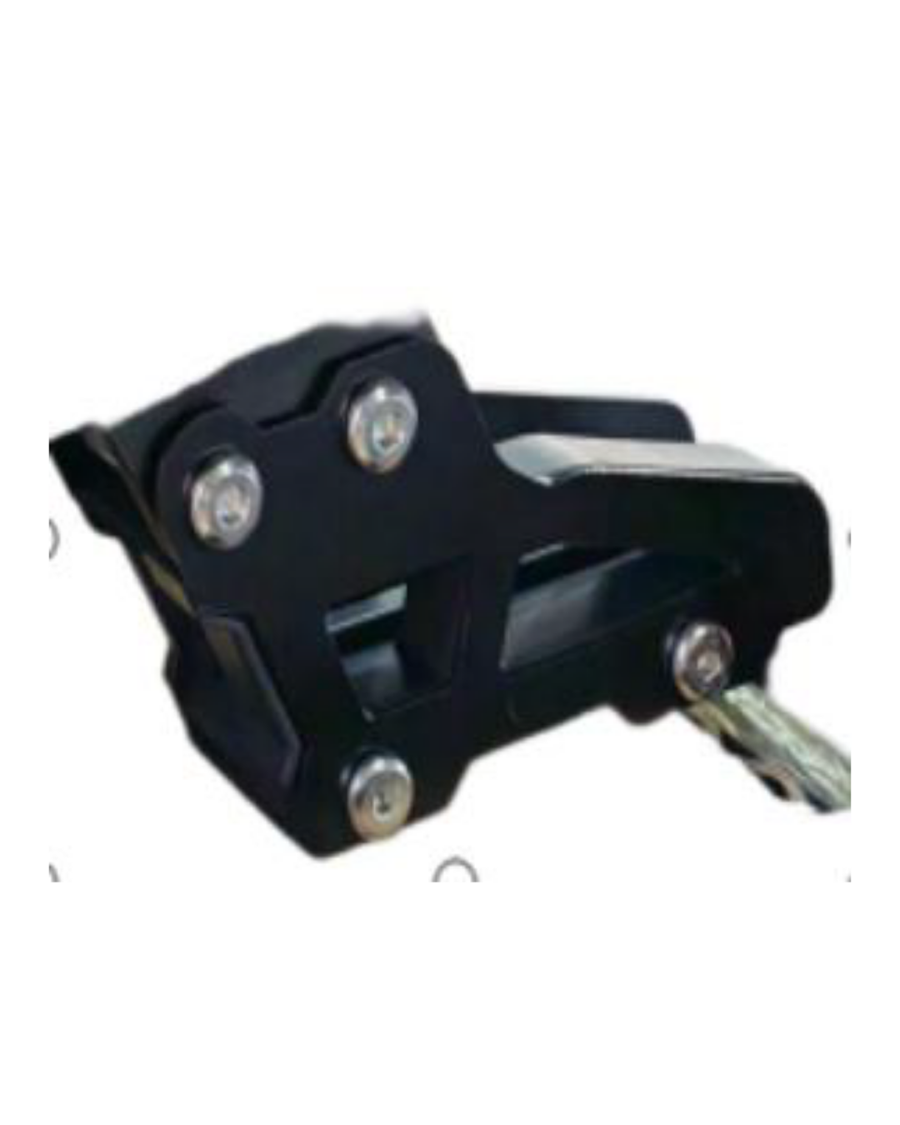

Mantis Mini Chain Guide

Chain guide liner/chain guide 20*23/TPU/black
Chain Guide Plate Left/Chain Guide 20*23/Q235/Black
Chain guide plate right/Chain guide 20*23/Q235/Black
Spacer (chain guide)/8.5*12*29.5L/Blue and white zinc
T-type cut edge nut/M6/Blue and white zinc
T-type cut edge nut/M8*8/blue and white zinc
Hexagon socket chamfered flat head bolts/M6*45/8.8 grade/stainless steel
Hexagon socket head cap screws/M8*45/8.8 grade/stainless steel

Compatible With:

• Mini R
• Mini R17

SKU

03-05-ZJ03

Weight

5lb

Note
‍Photos are for reference only. Actual product may differ in appearance.

Please feel free to reach out if you need assistance confirming compatibility with your bike.

Washing Instructions:
While the Mantis X Pro is water resistant, we do not recommend spraying water in certain areas. Specifically avoid spraying water at the controls on the handlebar and at the area around the charging port.

‍Where to Avoid:
‍Avoid spraying water at the dash, throttle, handlebar controls and charging port areas. Instead, use a damp cloth to clean off these areas.

‍Where you can spray water:
‍You can spray water at or below the fender in the front, the frame below the seat, swing arm, rear wheel, rear suspension, and rear fender.

‍Maintenance:
‍Make sure to change your gear oil at regular intervals. Refer to your user manual or our service & support page for instructions and information on servicing your Mantis.
