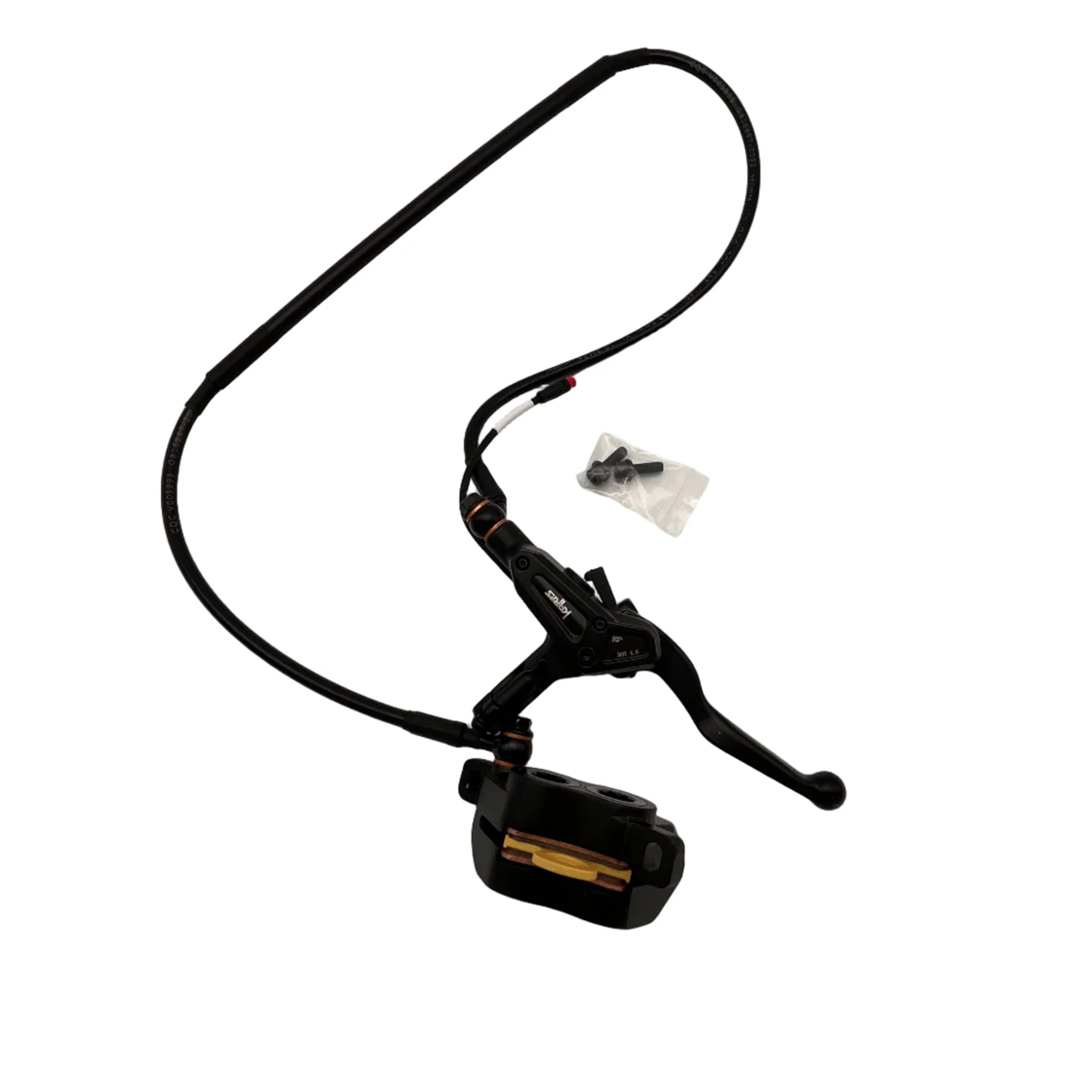

Mantis X Pro Front Disc Brake Lever Assembly

Front Disc Brake Assembly/MT-5E Pro(3.5 Finger Ball Head) Right Front One Piece
Right Disc Brake Upper Pump/MT-5E Pro
Fuel pipe/φ8*L1050mm/MT-5E Pro/hard pipe 300mm from lower pump L260mm
Brake disconnect cable w/white English numbered tube/Disconnect cable HT-207AG/160mm
Front Disc Brake Caliper/Four Cylinder Caliper(22+21mm) Sintered Ringer Tangze L0G0 Gap 3.1mm-3.3mm
Hexagon socket cylindrical head bolts/M6*20/with drop-proof rubber/with flat washers/black zinc

Compatible With:

Mantis X Pro

SKU

05-03-ZJ01

Weight

4lb

Note
‍Photos are for reference only. Actual product may differ in appearance.

Please feel free to reach out if you need assistance confirming compatibility with your bike.

Washing Instructions:
While the Mantis X Pro is water resistant, we do not recommend spraying water in certain areas. Specifically avoid spraying water at the controls on the handlebar and at the area around the charging port.

‍Where to Avoid:
‍Avoid spraying water at the dash, throttle, handlebar controls and charging port areas. Instead, use a damp cloth to clean off these areas.

‍Where you can spray water:
‍You can spray water at or below the fender in the front, the frame below the seat, swing arm, rear wheel, rear suspension, and rear fender.

‍Maintenance:
‍Make sure to change your gear oil at regular intervals. Refer to your user manual or our service & support page for instructions and information on servicing your Mantis.
